Assignment 7: The Music Editor: Third Movement

Due: Wed 04/05 at 8:59pm; self-evaluation due Thurs 04/06 at 8:59pm

This assignment is to be completed with the same partner as Homework 6.

In this assignment you will complete your music editor. You will need to implement one more view, and implement/enhance the controller for your editor.

Like views and models, controllers are best described as an interface whose purpose is to mediate the interactions between the view and the model. Multiple implementations of controllers are possible — potentially one for every model/view pairing. However it is also possible to implement one controller that works for all your view: it depends on your design.

1 Implementing a controller

Your controller must allow the user to:

  1. Most likely, you have an interface for a view, which is directly implemented by your console, gui and midi views. You will notice that some views offer operations that other views do not (i.e. key events do not make sense for the console views). You may either create a super interface that offers all functions, and then have individual views suppress some of them, or you can create interfaces for each view type/capability and implement your views accordingly.

2 Enhancing your GUI view

2.1 Handling the keyboard, generally

Look at the code for the MVC examples. Since you may be using several keys in this assignment, using the map design is recommended. Recall how the controller gets control when a key is pressed: make sure your implementation of this assignment retains this essential ability of a controller.

In particular by the end of this assignment your gui view is expected to use keys to start playing the music, stop playing the music, scroll the gui view sideways and jump to the beginning and end of the music.

2.2 Mouse handling

Mouse handling involves a MouseListener interface, just as keyboard handling involved a KeyListener.

  1. Design a class that implements MouseListener. It probably does not need to be as sophisticated and indirect as the KeyboardHandler above, since there are only three possible mouse events (left, middle and right clicks), rather than an entire keyboard.

  2. Enhance your controller again to create one of this mouse listener objects, and configure it however you need to.

  3. Enhance your GuiView again with addMouseListener(MouseListener) (and possibly a removeMouseListener too).

  4. If you need to use only 1 or 2 of these listeners, starting from a MouseAdapter may be simpler.

2.3 Organization of dependencies

Notice that the controller is telling the GuiView “please use the following objects to react to events”, while the GuiView is advertising that it is capable of reacting to mouse and keyboard events. The views don’t have to know anything about what the controller wants to do with those events, or even have a reference to the controller object directly. This ensures a looser coupling between the controller and view, and allows the controller to freely modify the keys it wants to handle without requiring changes within the view (beyond the initial, generic ability to handle events in the first place).

3 Composite Views

Having visual and audible views completely separate seems unfortunate: it’s time to remedy that.

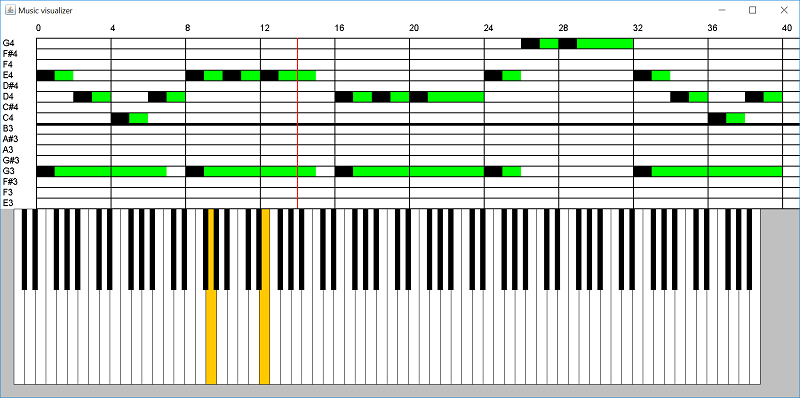

  1. Design a new view that takes in both a GuiViewImpl and a MidiViewImpl. It should be able to start, pause and resume playback of the sound, and it should cause the red line to sweep across the gui view as the music is played, in a synchronous manner (i.e. the beat at which the line is should be the beat whose notes the midi view is playing. Once the current beat reaches the right-hand edge of the view, the view should scroll to bring the next measures of the composition into view.

This will likely require writing other methods in your views. Depending on how you have designed your view interfaces, carefully think about where these methods need to be.

To synchronize the sound and visual views, you will need some sort of common reference of time. Either both sound and visual synchronize with a common time, or one of the views synchronize with the other. (Do any of your views already have the notion of time?)

You have some freedom in designing this composite view. Primarily it is important that it reuses the existing gui and midi views in some way, rather than replicate them.

3.1 Adding notes

Use the mouse listeners to enable adding a note by clicking on the appropriate key in the keyboard portion of the visual view. You may assume that this can be done only when the music is not playing (so that the user is not racing with the music player). You may also assume that the user can first scroll the red line to the appropriate beat and then add a note that starts at that beat. Finally you may assume that a single click adds a note of single beat duration of the appropriate pitch.

After adding that note the red line should automatically move by one beat, so that it is possible to smoothly add several notes.

3.2 Assignment

  1. Implement the controller, keyboard and mouse handlers, and the new view above. Place all the code of your views in the cs3500.music.view package, and the controller and handlers in the cs3500.music.controller package.

  2. Document any further changes made to your models or views from the previous assignments: explain what was added, removed or changed (besides the package declaration), and why.

4 Testing

Testing KeyboardHandler is straightforward — by design, it should be very easy to construct mock Runnables that confirm that they’ve been run.

Testing the controller should be straightforward — all of its behavior is either in its methods, or in the wiring-up of those methods to key and mouse event handlers. If you’ve already tested that the wiring works properly, now all that remains is to test the methods themselves.

Complete any testing from the last assignment that you didn’t otherwise finish.

Hint: When you are testing each component above, be clear about what you are testing. The objective of testing the keyboard handler is to ensure that the appropriate action is taken on the appropriate key, not whether that action is successfully completed (that is part of testing the controller).

5 Grading standards

For this assignment, you will be graded on

6 Submission

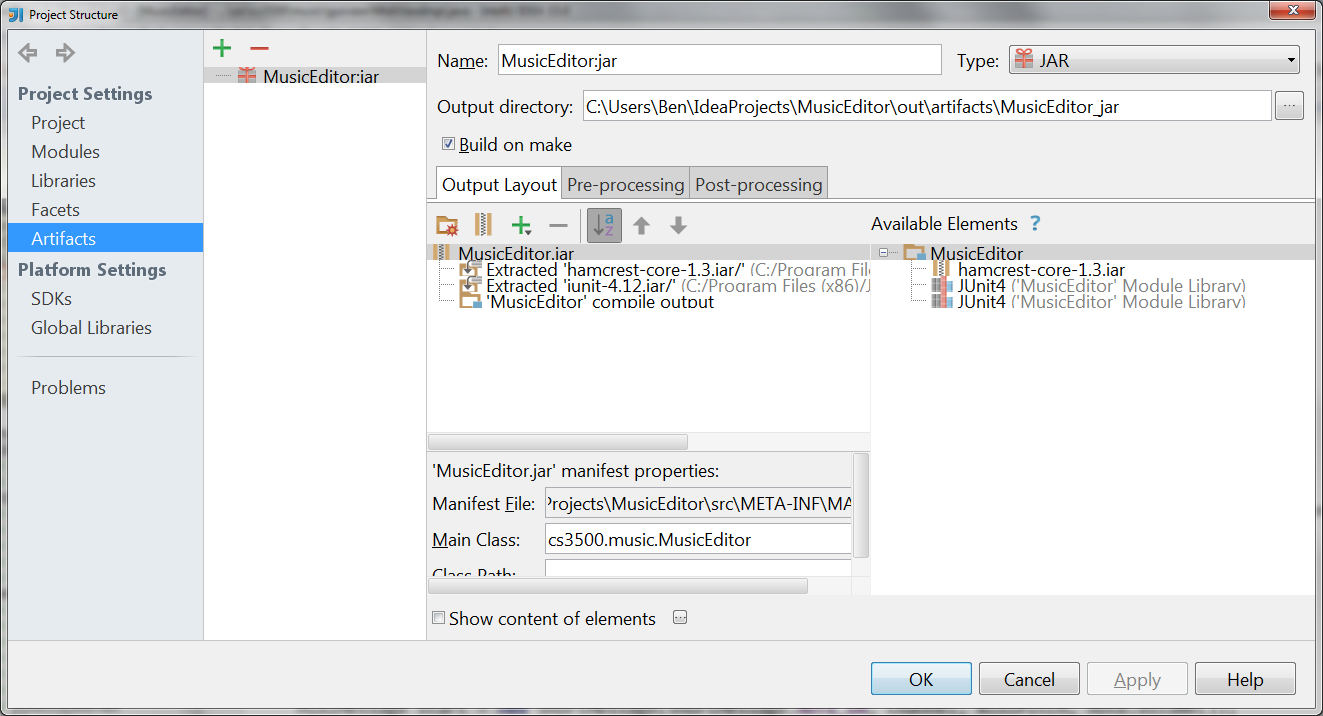

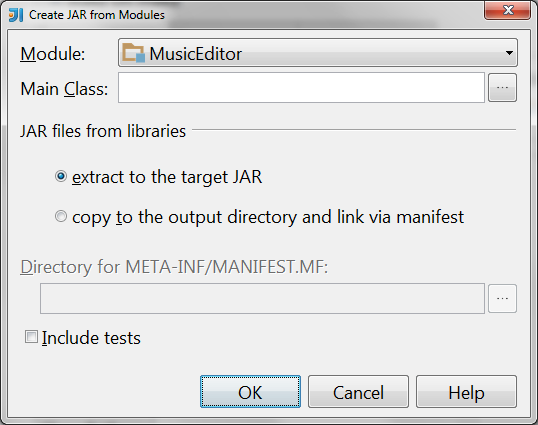

To create a JAR file, do the following:

Please submit your homework to https://handins.ccs.neu.edu/ by the above deadline. Then be sure to complete your self evaluation by the second deadline.
